BASIC PARAMETERS |
MODELS |
|
|

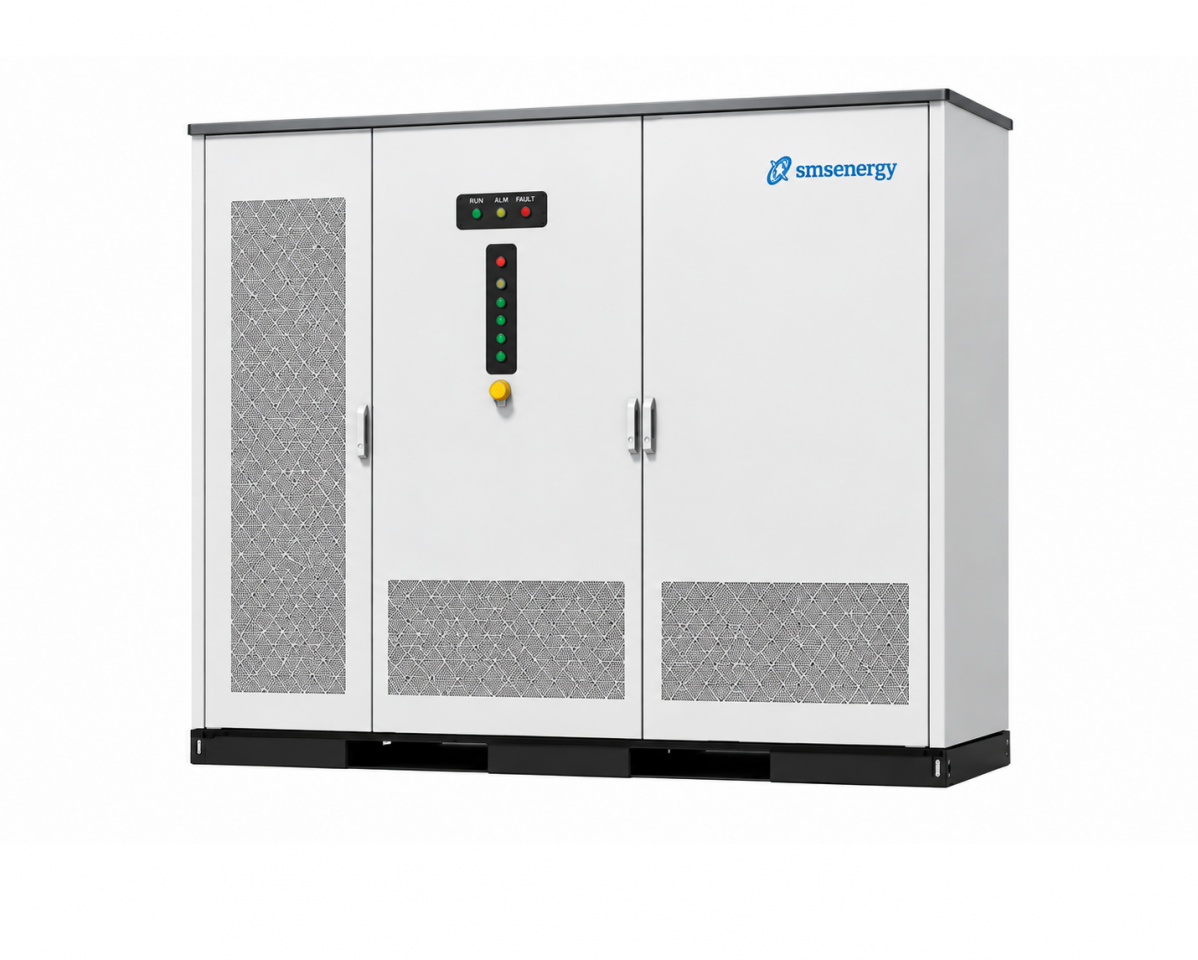

B522L-250H3S-240M2-HX1 |

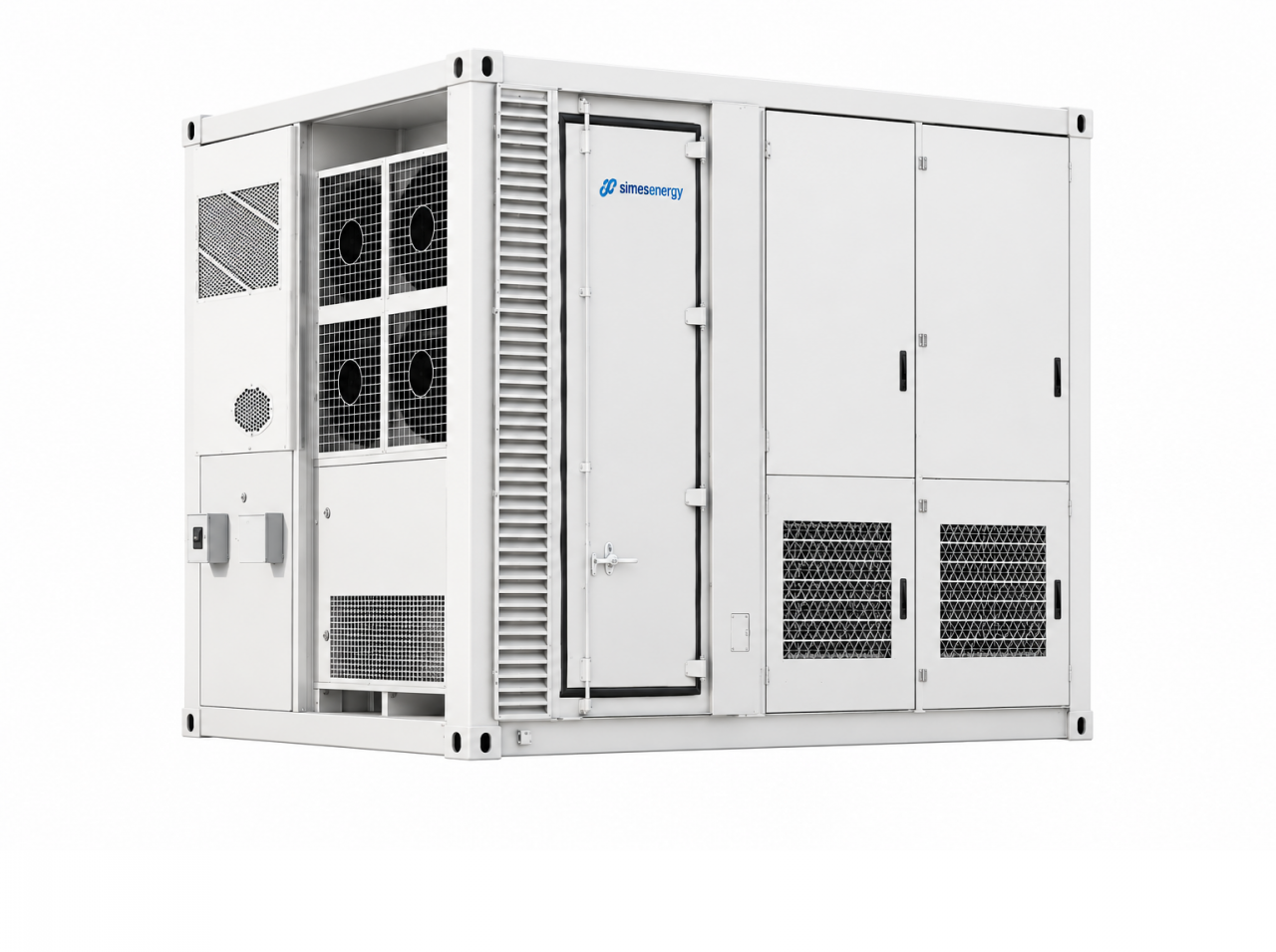

CB1ML-500H3S-480M4-HX1 |
|
|
Battery Type |
LiFePO4 Battery |
LiFePO4 Battery |
|
Nominal Energy |
522 kWh |
1 MWh |
|
Nominal Voltage |
832 V |
832 V |
|
Nominal Capacity |
628 Ah |
1256 Ah |
|
PV |
||
|
Maximum Power |
240 kW (2 channels) |
480 kW (2 channels) |
|
Maximum PV Voltage |
950 VDC |
950 VDC |
|
MPPT Voltage Range |
250 … 850 VDC |
250 … 850 VDC |
|
Maximum PV Input Current |
200 A + 200 A |
200 A + 200 A + 200 A + 200 A |
|
Number of MPPT Channels |
2 |
2 |
|
AC (ON-GRID) |
||
|
Rated Power |
250 kW |
500 kW |
|
AC Voltage |
400 VAC / 230 VAC (L1/L2/L3/N/PE) |
400 VAC / 230 VAC (L1/L2/L3/N/PE) |
|
GENERAL PARAMETERS |
||
|
Diesel Generator Port |
Yes |
|
|
Communication |
RS-485 / Ethernet / 4G |
|
|
IP Protection |
IP 65 (Battery) |
|
|
Fire Protection System |
Yes |
|
|
Operating Temperature |
−10 °C … 55 °C |
|
|
Humidity Range |
5%…95% |
|
|
Altitude |
< 2000 m |
|
|
Battery Cooling |
Liquid cooling |
|
|
PCS Cooling |
Intelligent cooling |
|
|
Dimensions |
2 480 × 1 400 × 2 050 mm |
2 991 × 2 438 × 2 896 mm |
|
Weight |
4 900 kg (about) |
10 500 kg (about) |
